What Are the Different Types of Ropes? Safety is No Small Matter; Beware of Non-Standard Use!
From cotton and hemp to nylon, aramid, and high-performance polymers, different materials and manufacturing processes determine a rope's characteristics in terms of strength, elongation rate, corrosion resistance, and abrasion resistance. To ensure ropes can be used safely and effectively in fields such as safety, marine, military, mooring, firefighting, mountaineering, and off-roading, it is essential to select the appropriate rope based on its specific features and safety requirements, adhere to usage standards, and be vigilant against non-standard practices. Below is a detailed explanation categorized by different application areas.

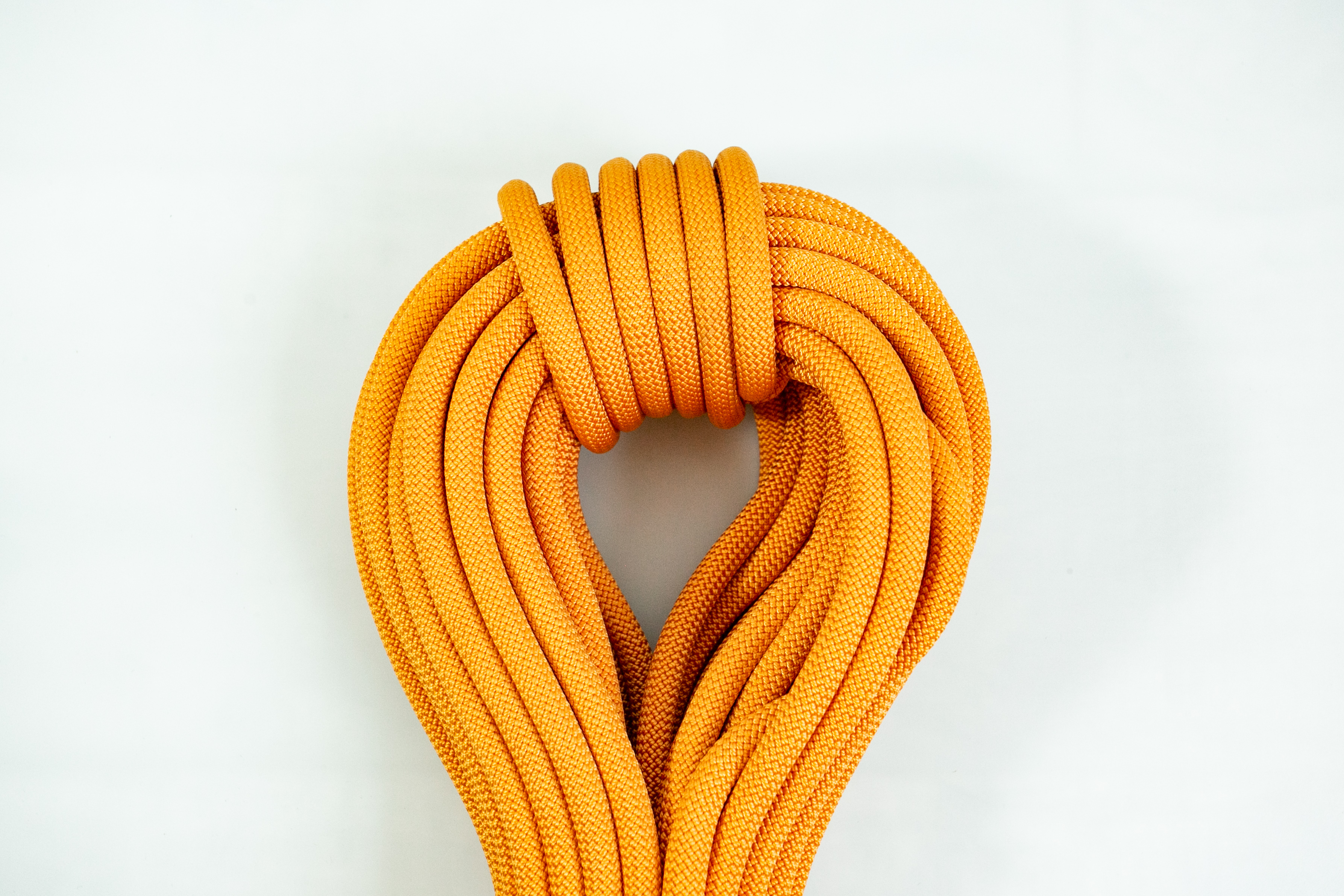

Mountaineering Ropes
As the most critical equipment in mountaineering, techniques like ascending, descending, and protection all revolve around the rope. The impact force, elongation, and number of falls held are three crucial technical parameters for a mountaineering rope.
Modern mountaineering ropes are all kernmantle ropes (a braided sheath over a core of multiple twisted strands), not ordinary nylon ropes. Patterned ropes are typically dynamic ropes, with elongation below 8%. Activities with a potential for dynamic falls must use dynamic ropes, such as rock climbing, mountaineering, and rappelling. Generally, white ropes are static ropes, with elongation below 1% or considered zero under ideal conditions. They are commonly used for caving, fixed lines in mountaineering, and industrial purposes.
Not all mountaineering ropes can be used singly. Ropes marked with UIAA① on the end can be used singly in less steep terrain. Ropes around 8mm in diameter marked only with UIAA lack sufficient strength for single use and must be used doubled.

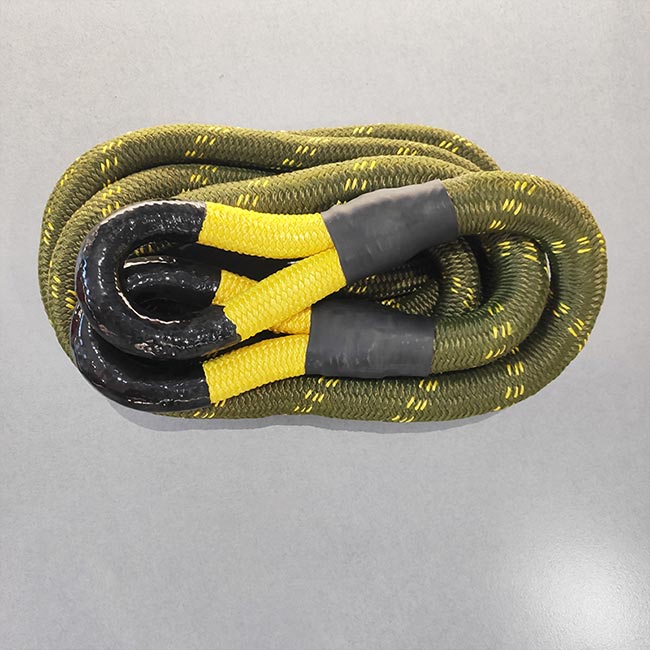

Tow Ropes (Kinetic Recovery Ropes)
Common off-road series include recovery straps, winch ropes, and soft shackles. Recovery straps are usually made of polyester/polyamide with a double-braided structure, making them sturdy and abrasion-resistant. Winch ropes can be used on off-road vehicles equipped with electric winches for self-recovery and are made from Ultra-High Molecular Weight Polyethylene (UHMWPE). Soft shackles, also made from UHMWPE fiber, are used by manufacturers to connect the recovery strap to the vehicle.

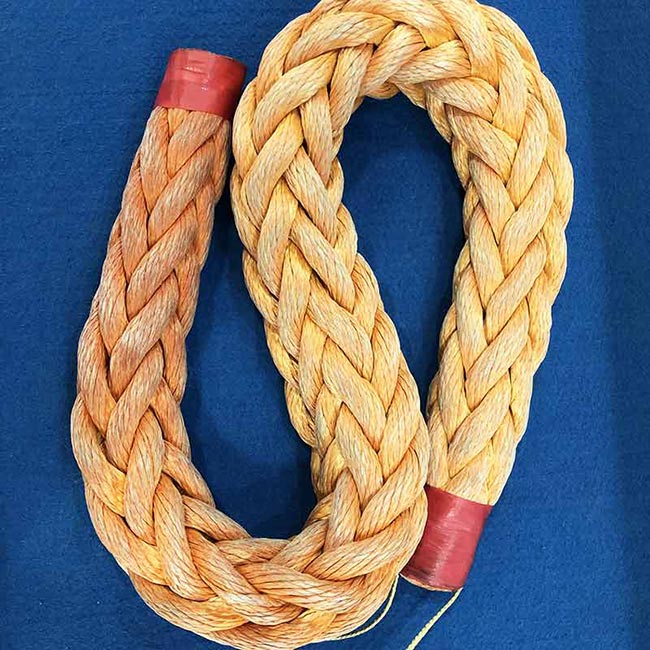

Mooring Ropes
Mooring ropes are a critical part of the mooring system, used to secure vessels and ensure they can effectively withstand the forces of wind, current, and tides under standard environmental conditions during berthing. Accidents caused by mooring rope failure under load can be severe, placing extremely stringent demands on the rope's stiffness, resistance to bending fatigue, corrosion resistance, and elongation rate.
UHMWPE ropes are the preferred choice for mooring lines. At equal strength, they weigh one-seventh of traditional steel wire ropes and can float on water. Diverse structures and rope coatings can be used to enhance the cable's performance for its intended application. In practical use, rope failures due to natural factors or improper human operation remain a significant concern, potentially causing serious injuries and equipment damage.
The safe use of mooring ropes should include, but not be limited to, the following: selecting ropes based on the vessel's design breaking load, ensuring each rope is under appropriate tension; emphasizing rope maintenance, and conducting regular inspections; adjusting mooring plans promptly according to weather and sea conditions; and fostering safety awareness among crew members.
Firefighting Ropes
Fire safety ropes are a key component of fall protection equipment for firefighters, used solely for supporting personnel during firefighting, rescue operations, disaster relief, or daily training. They are typically categorized by diameter into three types: lightweight safety ropes, general-purpose safety ropes, and self-rescue safety ropes. Common materials for fire safety ropes include polyester, polyamide (nylon), and aramid. Firefighting ropes are a type of special safety rope where strength, elongation rate, and high-temperature resistance are all critical factors.
Some fire safety ropes also incorporate a steel wire core with a braided outer fiber layer. Aramid fibers can withstand temperatures up to 400°C, offering high strength, abrasion resistance, resistance to mildew, and resistance to acids and alkalis, making them an excellent choice for firefighting ropes.
Firefighting ropes are static ropes with extremely low elongation, meaning they can only be used for rappelling. The ends of the safety rope should be properly finished, using a loop structure, seized with a whipping of the same material for fifty millimeters, heat-sealed at the whipping, and covered with a tightly fitting rubber or plastic sleeve.
As one of the essential tools for specialized operations, practitioners should recognize the importance and necessity of using ropes safely, strictly control every aspect of their use, minimize risks, and thereby promote safety and sustainable development within the industry.
Qingdao Huakai Ocean Technology Co., Ltd. (Hailiya Group), established in 1922, is a professional rope manufacturer. For 100 years, we have strictly controlled quality, persisted in innovation, continuously built and expanded our R&D team, overcome difficulties, and striven relentlessly to create an internationally renowned brand for special ropes and cables.
What are the different types of ropes? Furthermore, the required material and specifications of a rope vary depending on the specific situation and often require precise calculation. We have a professional technical team that can provide customized solutions tailored to your needs.
